12V to 48V 20A DC-DC Boost Converter Voltage Regulator
WG-12S4820M use a terminal block for input and output connections. It is designed to allow used of 48 volt equipments in 12v vehicles, PLC, boats, and telecommunications applications. This high quality DC/DC converter good for forklifts, golf carts, construction, communications, elecmotors, and recreational equipments etc. Also it is relatively immune to waterproof, vibration and shock. This unit have common negative ground (non-isolated module).
- Features
- Parameters Download
- Inquiry
- Related Products
Working current 0-20 Amps
Wide input voltage range 10-20V
100% full stable current output
100% full load burn-in test
High efficiency up to 96.8%
Support -40 °C environment
Over temperature, Over load, Low voltage protections
Remote ON/OFF control (optional)
Waterproof, Dust-proof, Shockproof design suit for much environment
Non-isolated between input and output
Design meeting RoHS / CE
2 Years warranty
Small volume, easy and quick installation
Features:
Parameters Download:
| Specifications | Certificates | User Manual | Dimension Files | HD Photos |

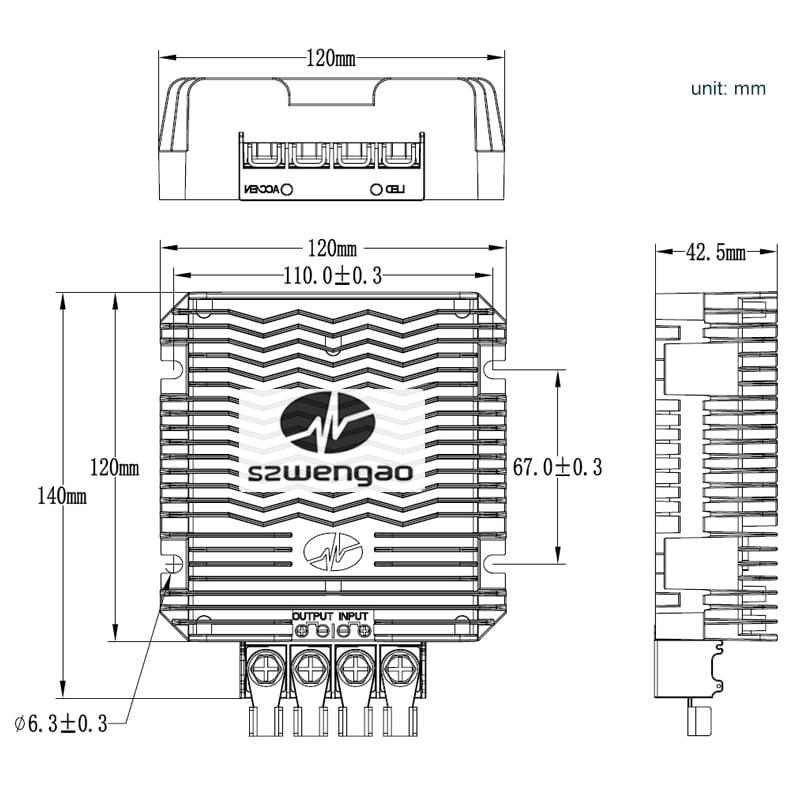

 Instruction Manual | 2D Size (A) | photo1 | ||
| photo2 | ||||
| photo3 | ||||
| photo4 |
