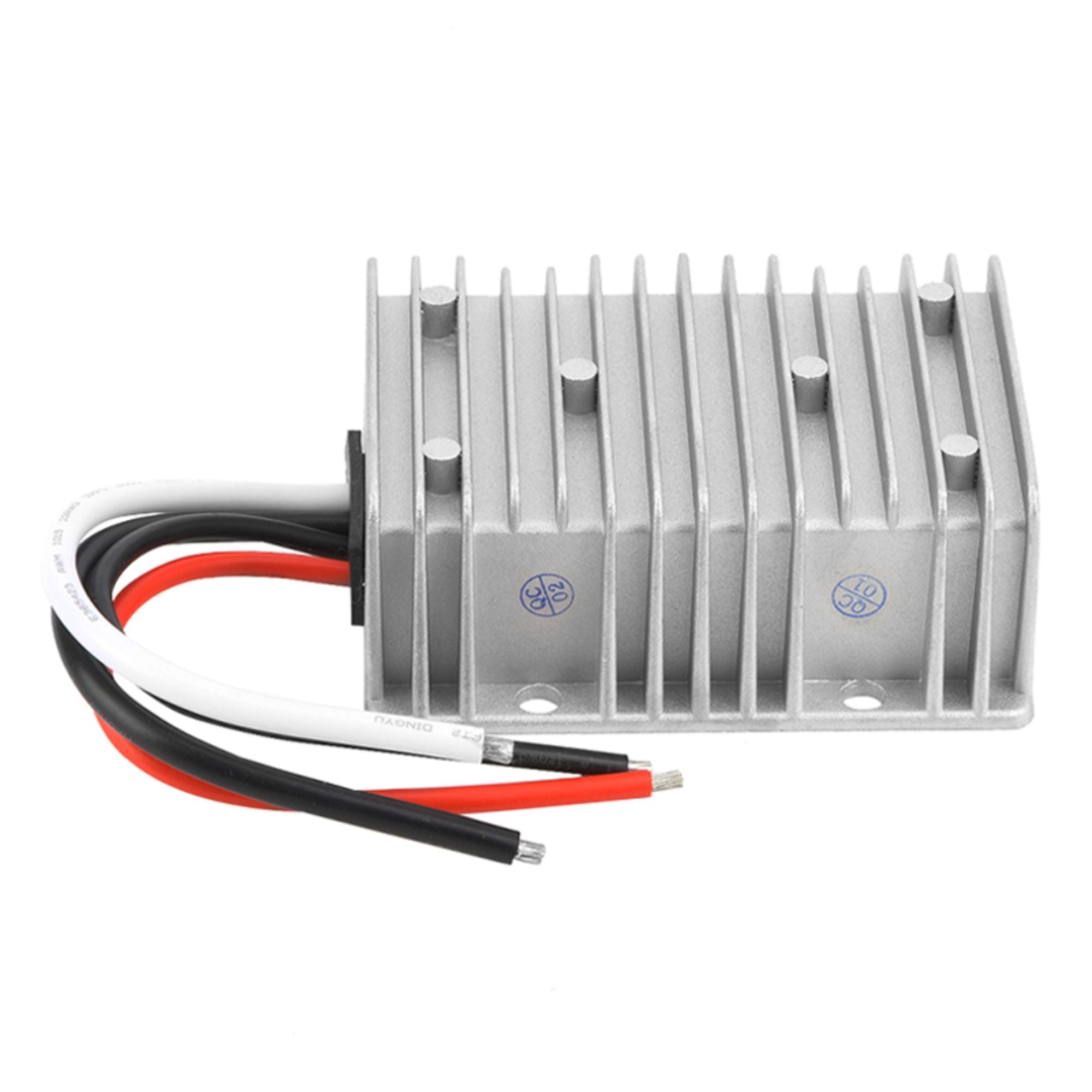

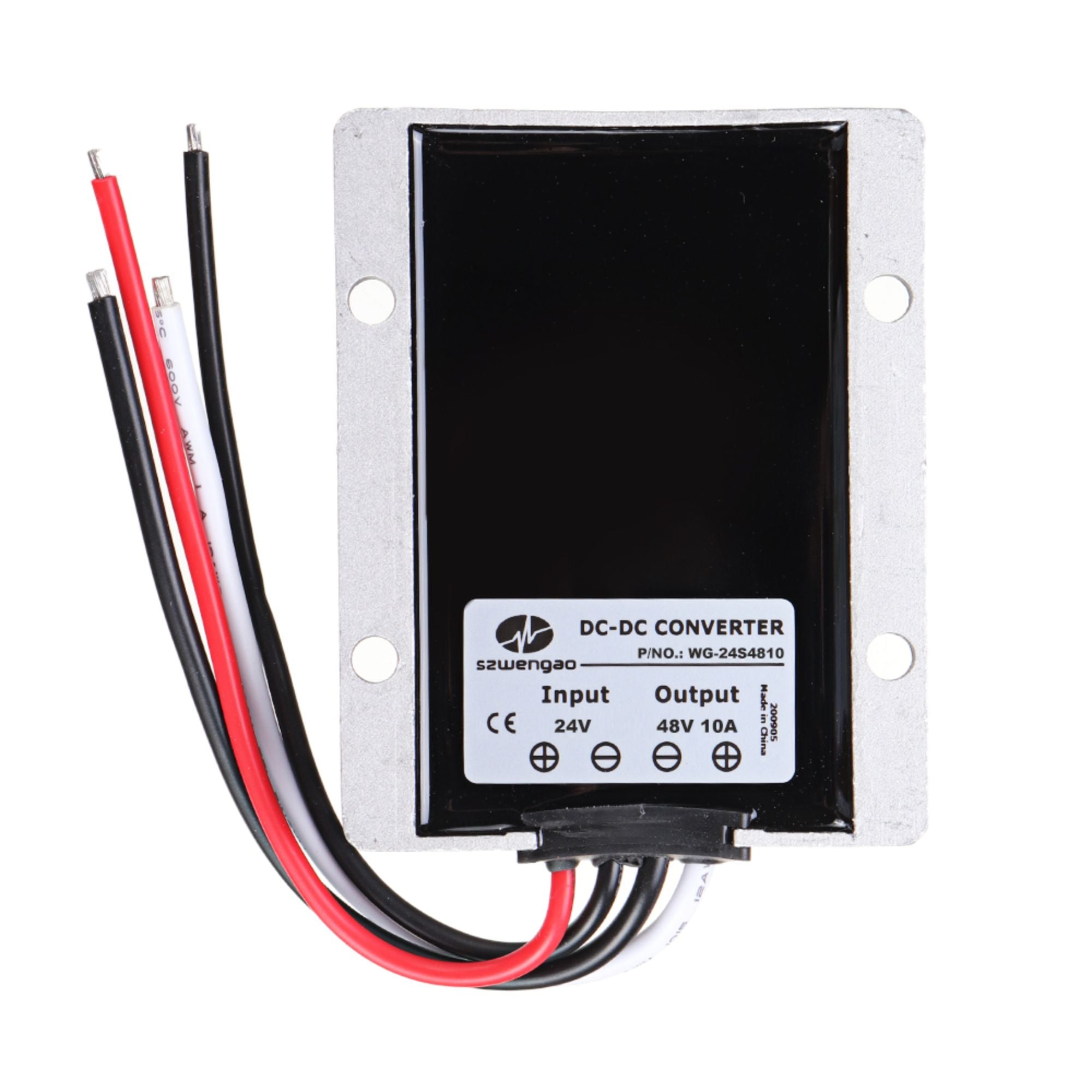

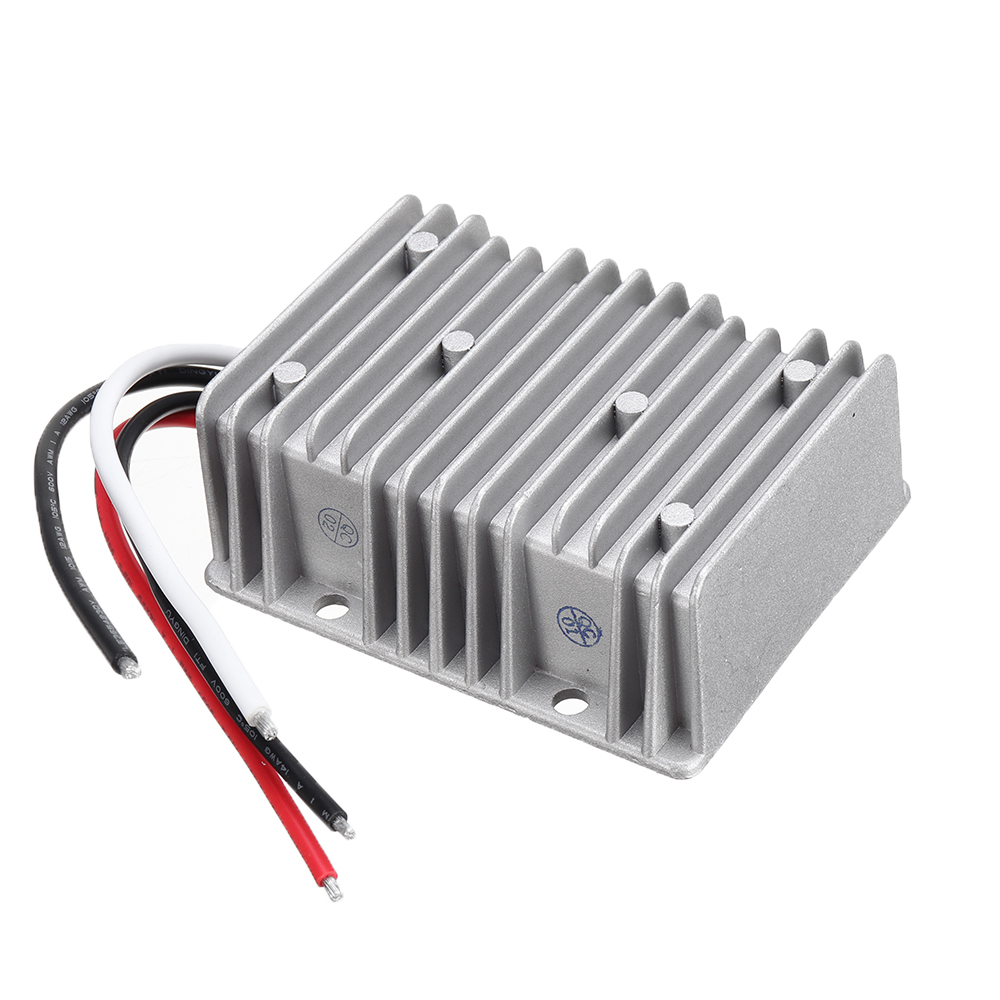

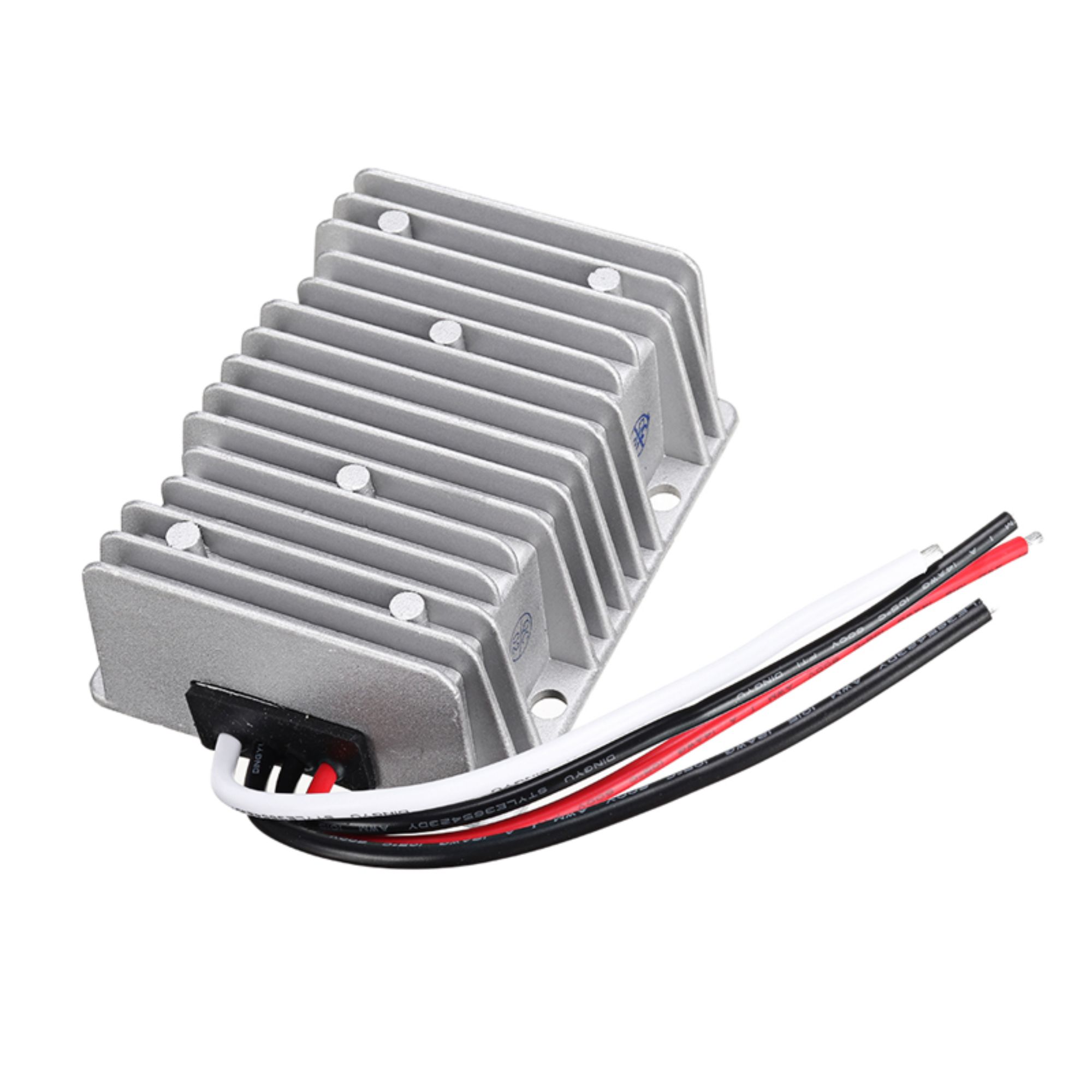

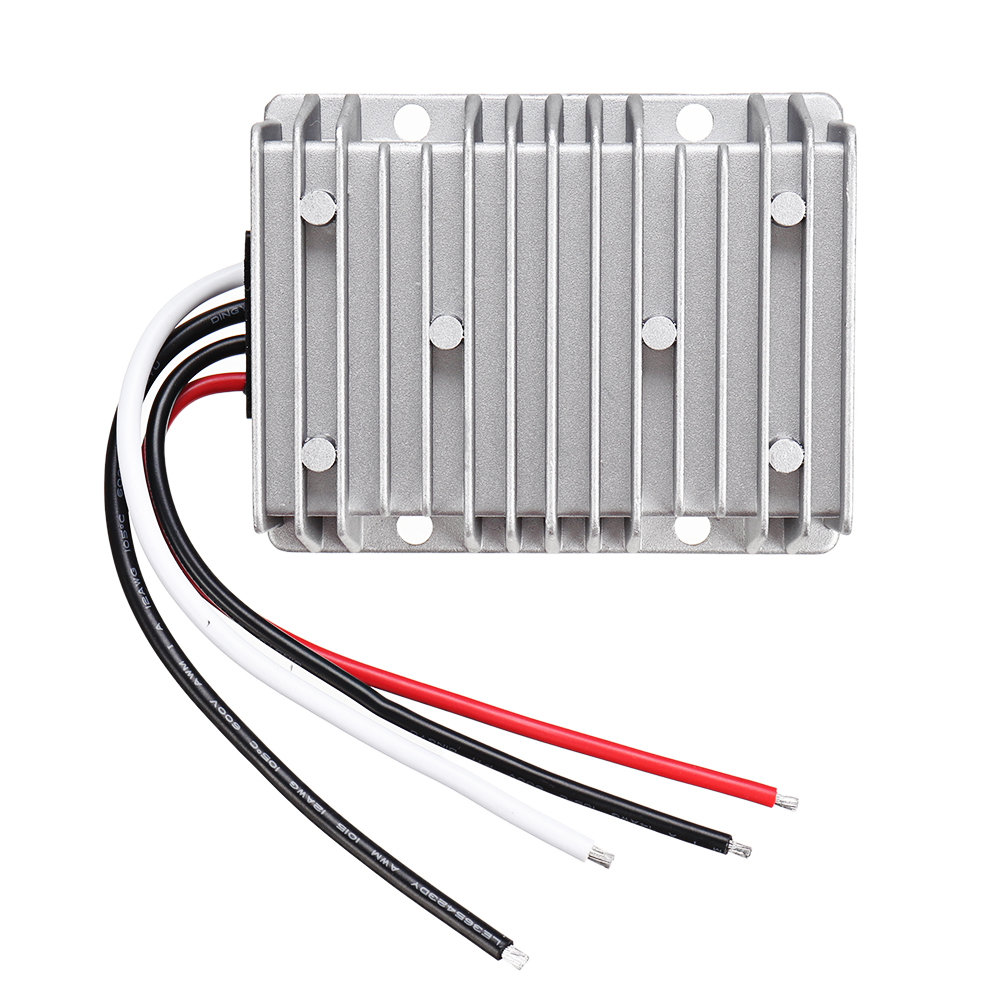

24V to 48V 15A DC to DC Converter Step Up Regulator For Automotive
DC/DC converter is a voltage regulator. It will take a DC input voltage, filter it and will produce a stabilized DC output voltage. such as WG-24S4815, it is from DC 18-32v input to a DC 48v output, and automatic work from 0 to 15Amps current.
WG-24S4815 is a fully regulated switchmode power converter that uses a synchronous rectification technology, designed to use of 48v equipments at 24 Volt input. This unit have common negative (non-isolated module), but can be used for almost all 48 volt applications. It is a reliable, efficiency, robust, and attractive DC/DC Converter for Cars, Bicycles, Boats, LED, Vehicles, Power stations and Solar Wind system etc. Also it is relatively immune to waterproof, vibration and shock.
- Features
- Parameters Download
- Inquiry
- Related Products
-
Working current 0-15 Amps
-
Wide input voltage range 18-32V
-
100% full stable current output
-
100% full load burn-in test
-
High efficiency up to 97.3%
-
Support -40 °C environment
-
Over load, Low voltage protections
-
Waterproof, Dust-proof, Shockproof design suit for much environment
-
Non-isolated between input and output
-
Design meeting RoHS / CE
-
2 Years warranty
-
Small volume, easy and quick installation
Features:
Parameters Download:
| Specifications | Certificates | User Manual | Dimension Files | HD Photos |

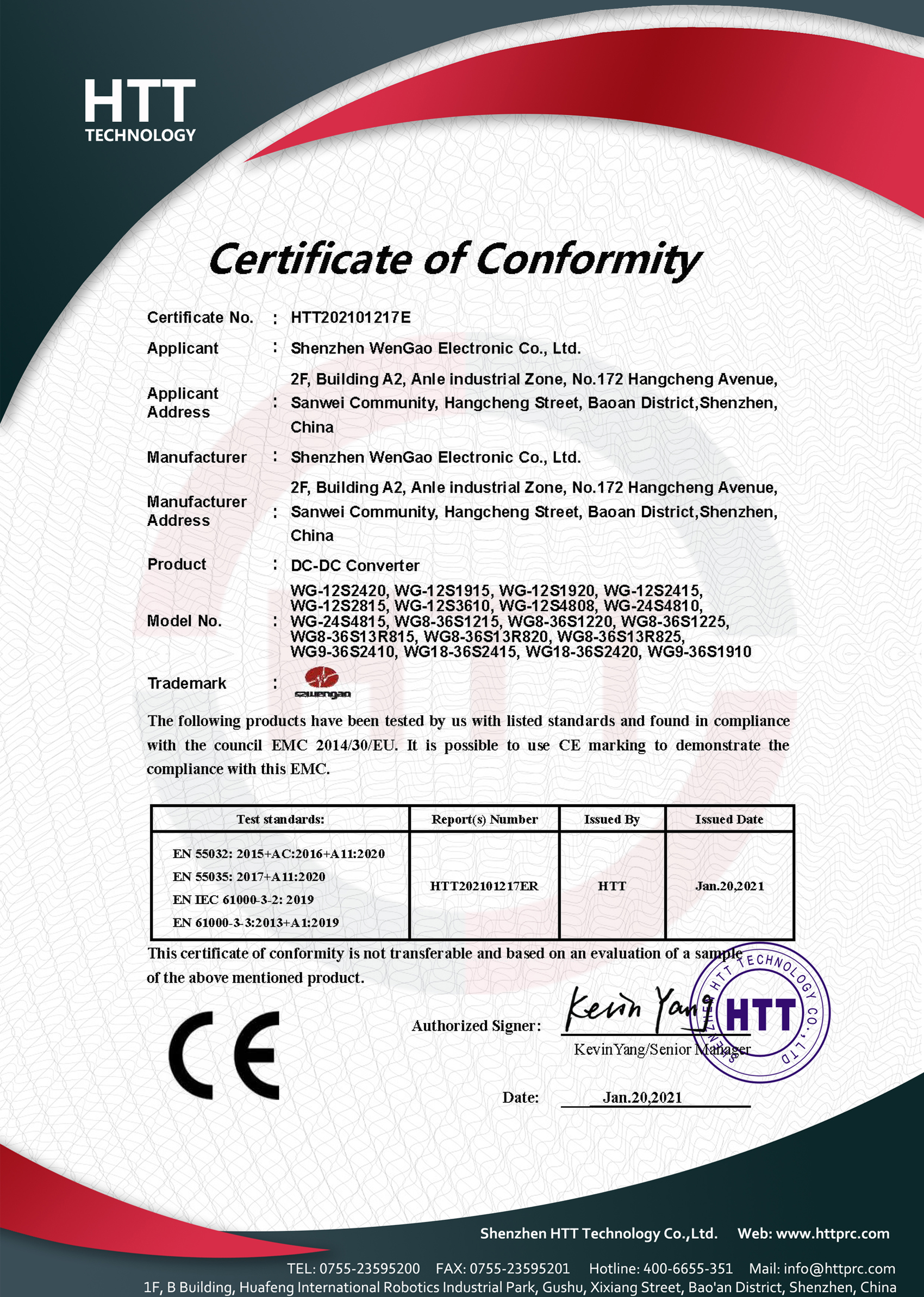

 CE |
Instruction Manual |

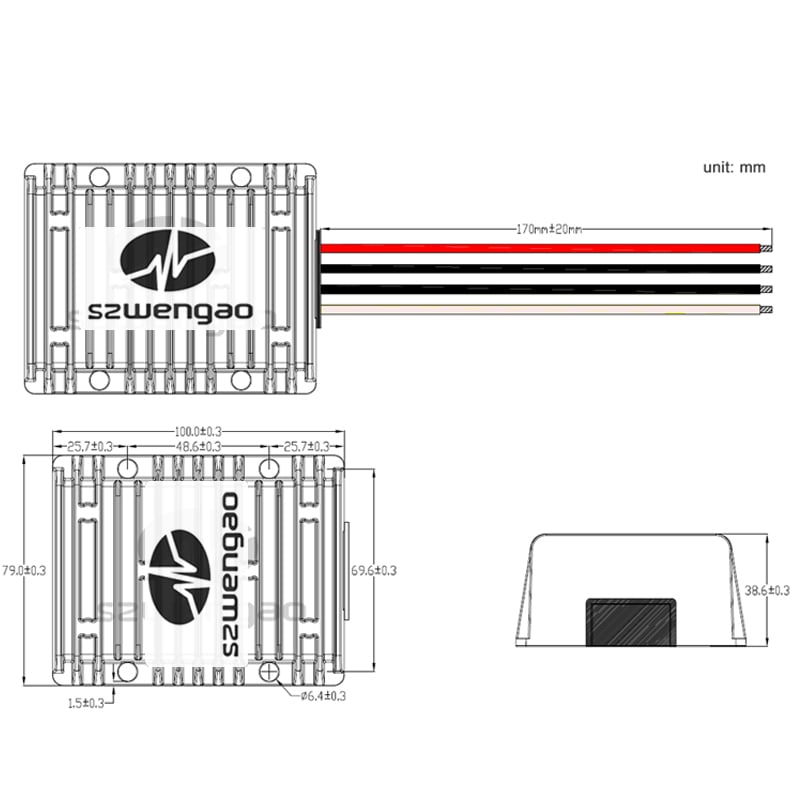

2D Size (A) |
photo1 |
|

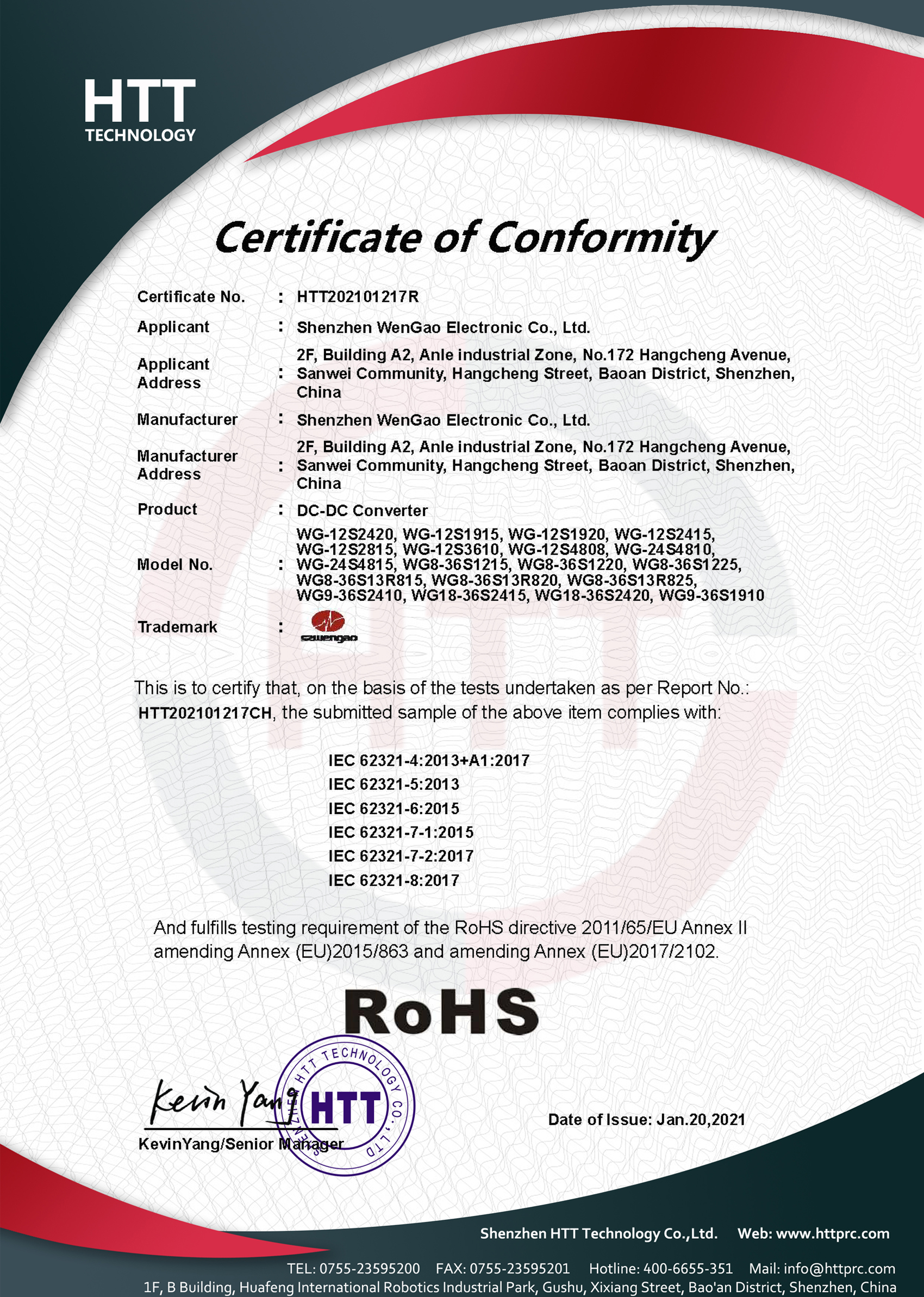

| RoHS |
photo2 |
|||
| photo3 |
||||
| photo4 |
