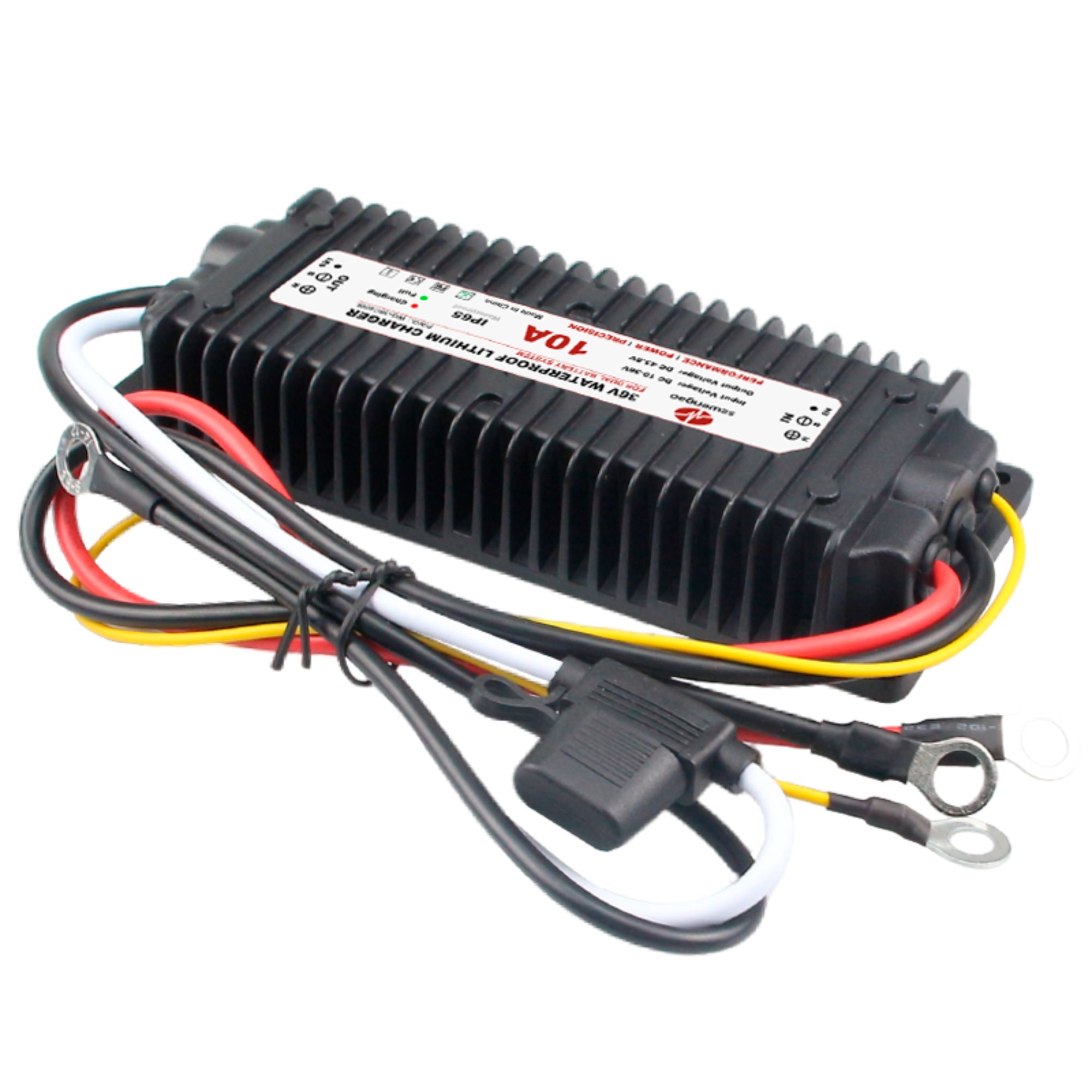

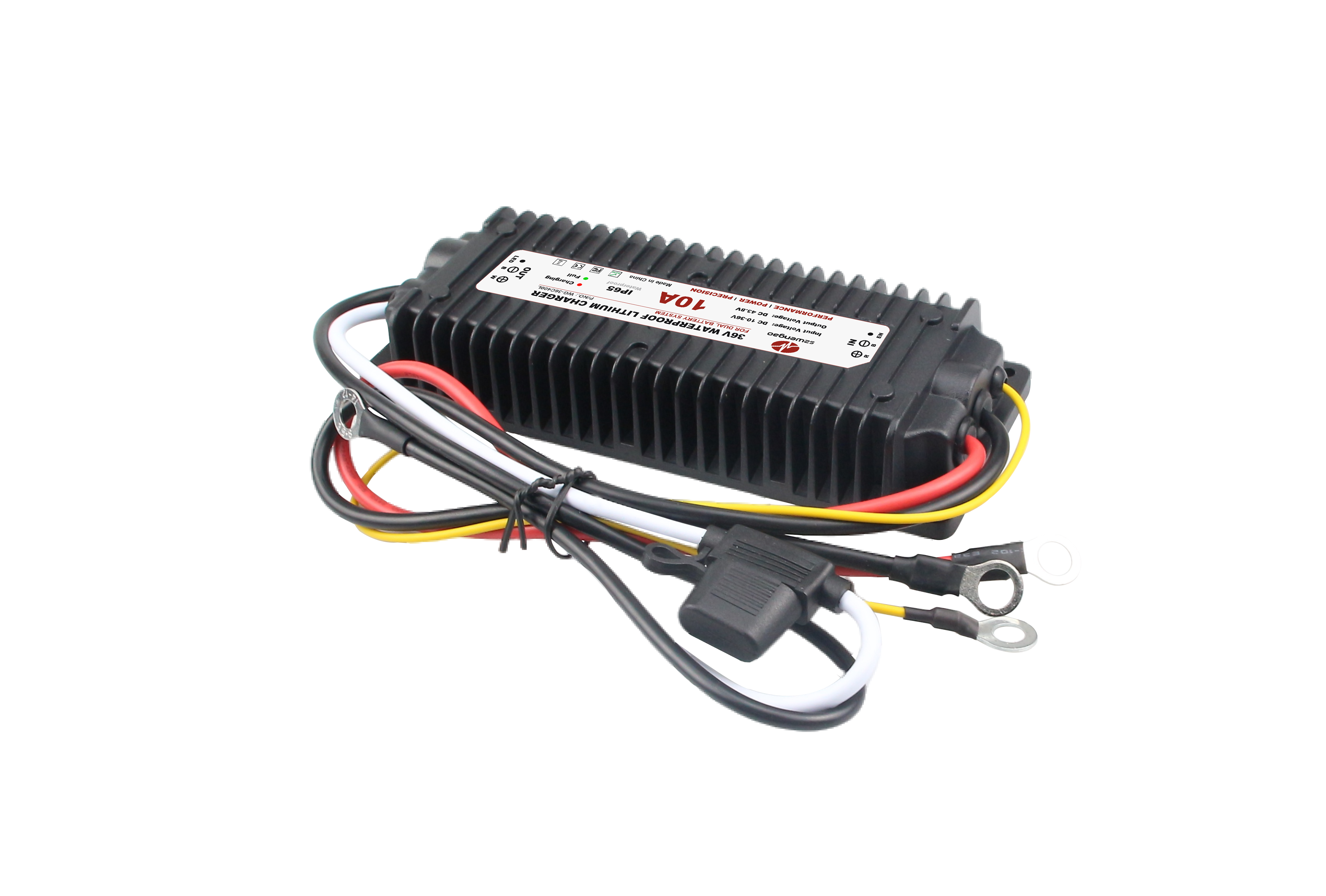

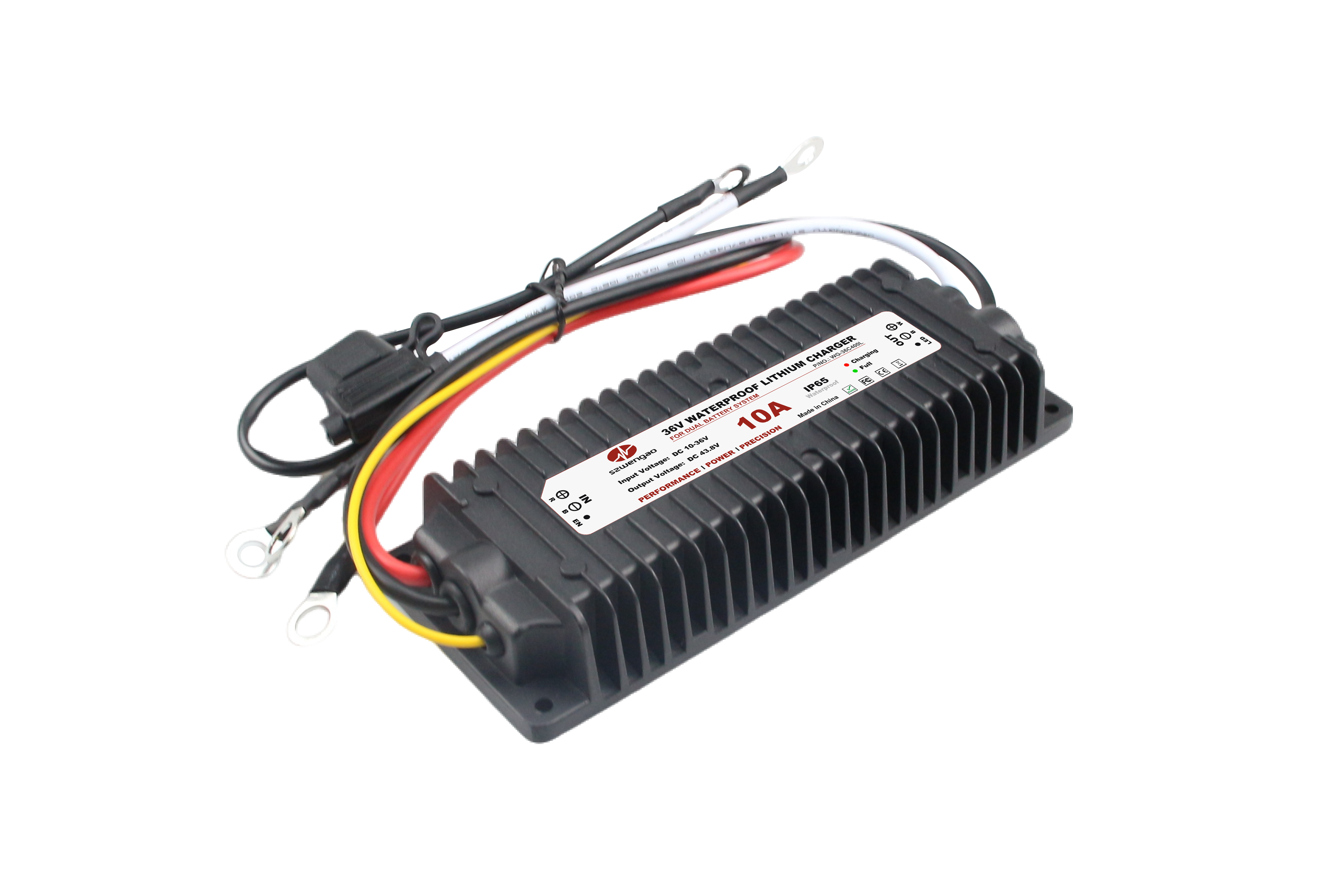

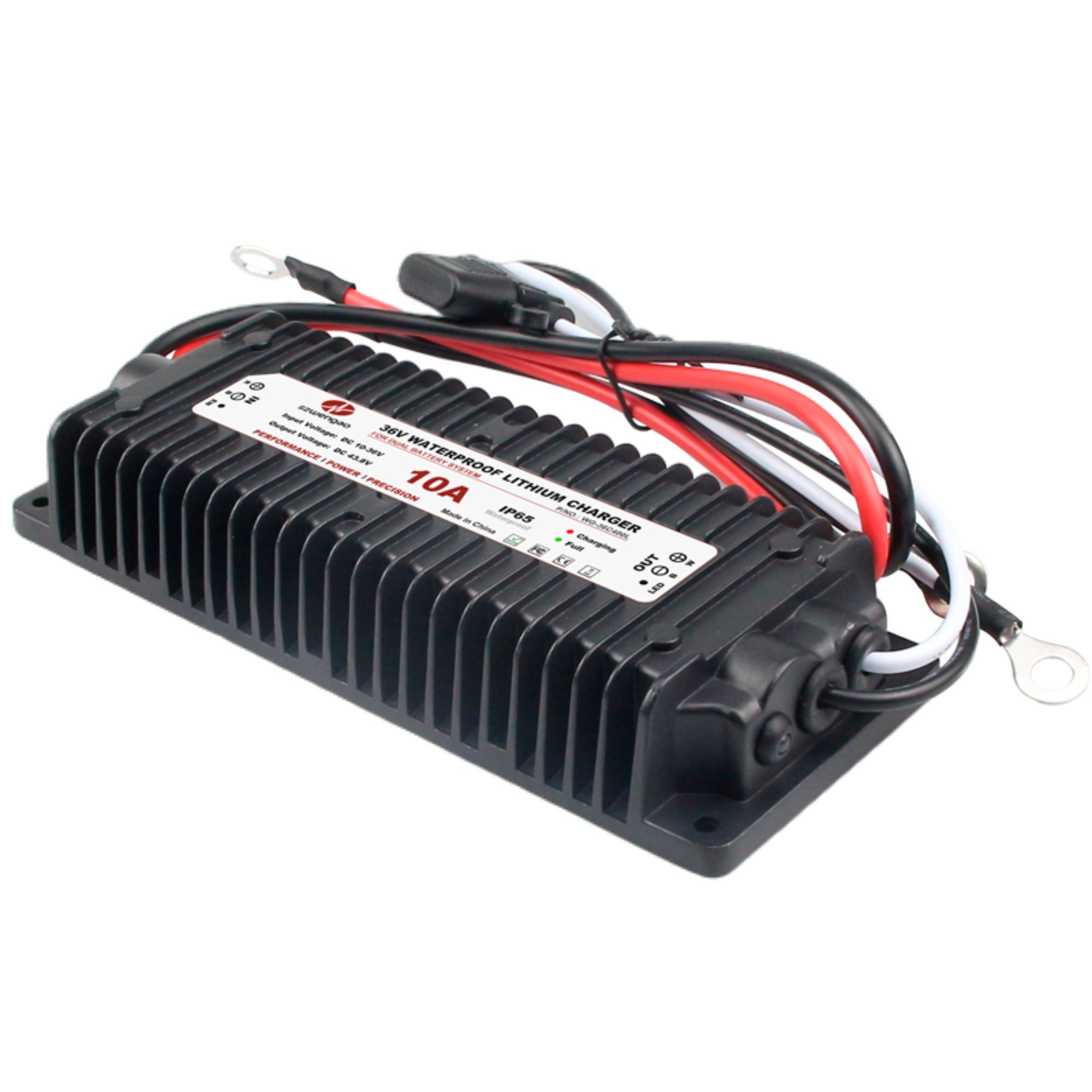

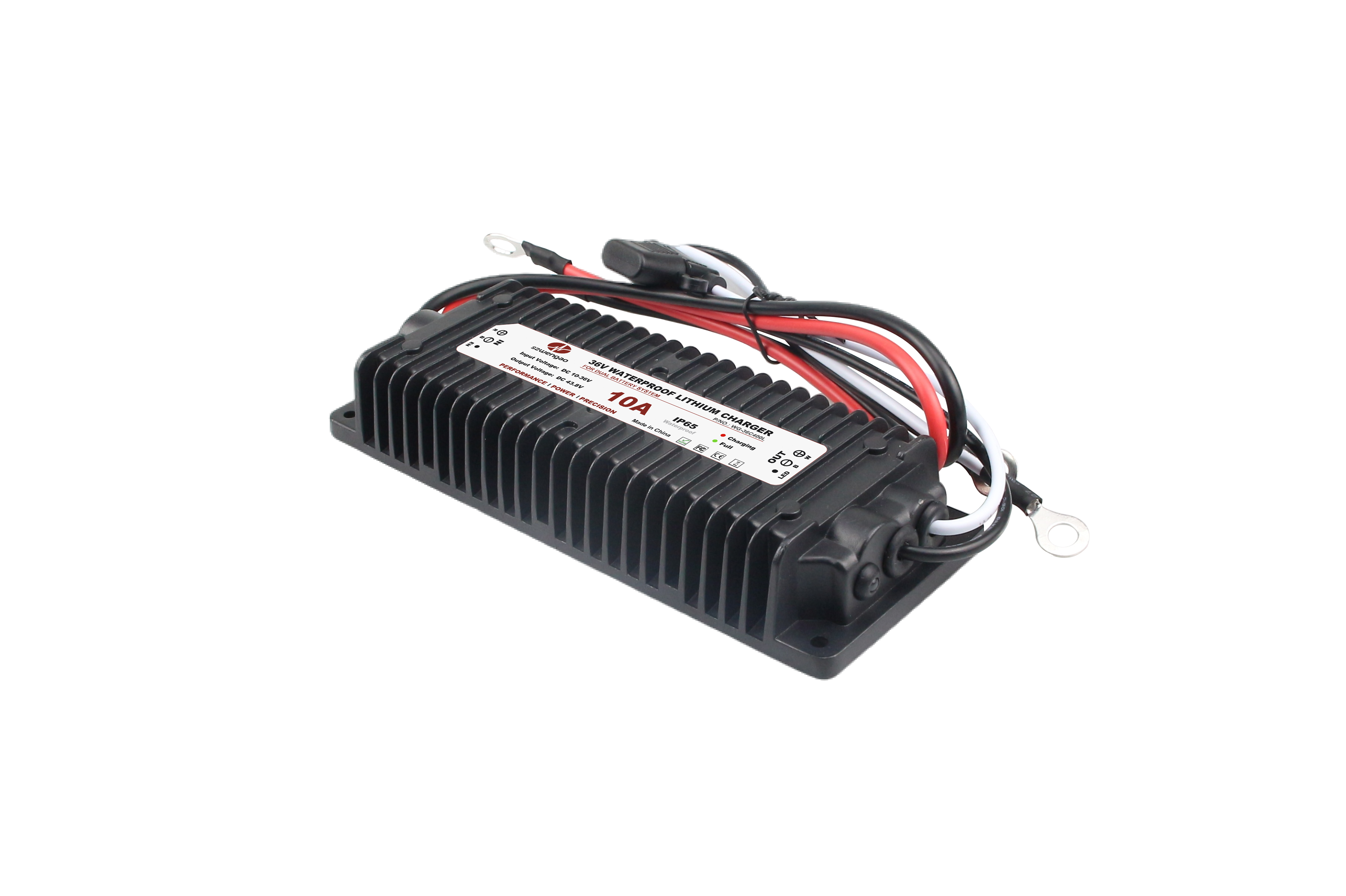

Smart 10-36V 12V to 43.8V 10A DC-DC Battery Charger for 36 Volt Lifepo4 Lithium Batteries
Applications including vehicles, RVs, campervans, boats, telecommunications, alternative energy, marine, and dual battery system etc. The WG-36C400L Charger is a "Smart" advanced marine grade and designed charger that will charge your single 36v battery bank from the charge current coming off of your boat engines alternator it will also charge your 36v battery when you plug in you 12v charger to charge your cranking battery at night at your house. It conncets to your 12v cranking battery and once your boat engines alternator charges up your cranking to a certain voltage the Quantum Charge activates automatically and starts converting the charge current coming from your boats engine up to 36v to charge your 36v battery bank. It has a very simple install, it is lightweight, and small in size so that it doesn't take up much space in the back of your boat! Marine grade waterproof! The Quantum Charge features low votlage, over temp, and over voltage protection built in.
- Features
- Parameters Download
- Inquiry
- Related Products
10A constant charge current
Special design for AGM, LiFePO4, and LiMn2O4 batteries
Working input voltage range 10-36 Volt
100% full stable current output
100% full burn-in test
Full charge current design and efficiency up to 96%
Support -40 °C environment
Provide LV, OT, OC(@CC model), and short circuit protections
Remote ON/OFF control (optional)
Waterproof, Dust-proof, Shockproof design suit for much environment
Advanced switching mode power supply technology
Non-isolated between input and output
Design meeting by RoHS / CE
2 Years warranty
Provide LED to show charging state, and natural cooling
Small volume, light weight, easy and quick installation
